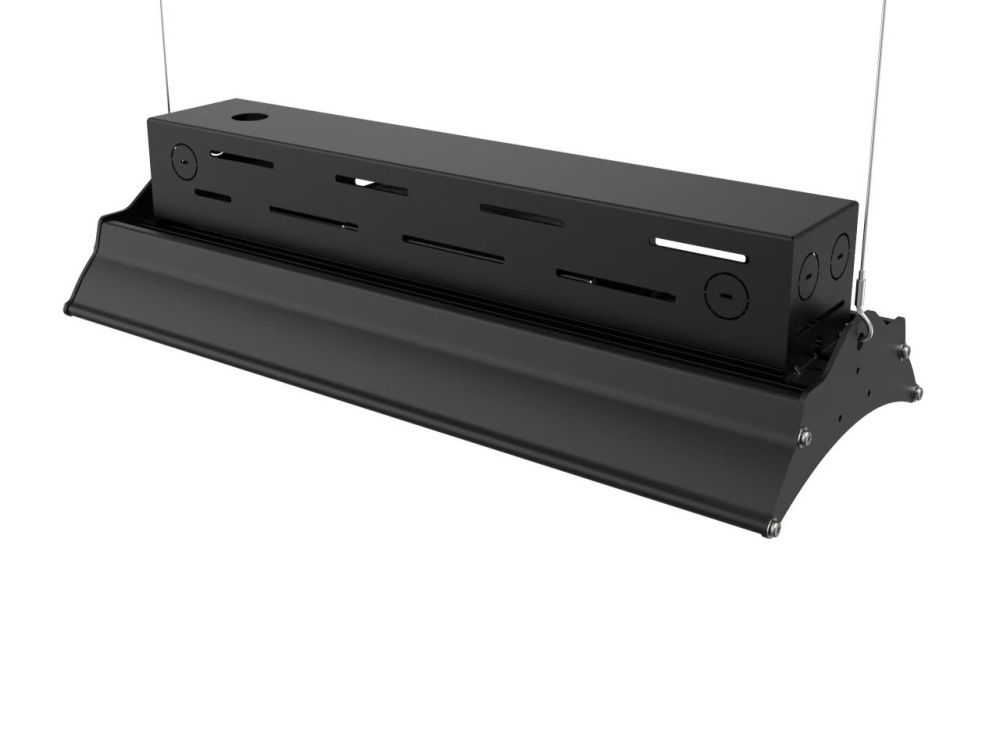

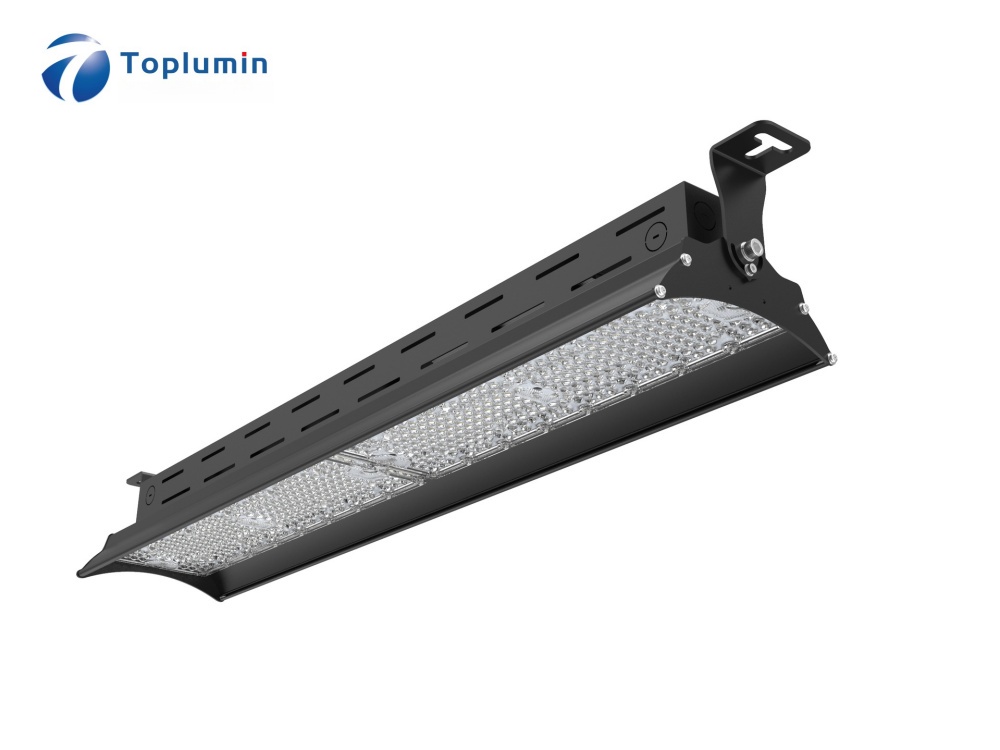

Linear LED High Bay Light Low Glare- VISUALCare
¬ Technical Data
Model No. | TL-LHB-VC1.5-100 | TL-LHB-VC1.5-150 | TL-LHB-VC3-200 | TL-LHB-VC3-240 | TL-LHB-VC3-300 | |
ν Optoelectronic | ||||||
Rated Power | 100W | 150W | 200W | 240W | 300W | |
System Efficacy(±5%) | Standard | 155lm/W | ||||
Pro | 170lm/W | |||||
Luminous Flux(±5%) |
Standard | 15,500lm | 23,250lm | 31,000lm | 37,200lm | 46,500lm |
Pro | 17,000lm | 25,500lm | 34,000lm | 40,800lm | 51,000lm | |
Color Temperature(CCT) | 3000K / 4000K / 5000K / 5700K / 6500K | |||||
Color Rendering Index | Ra>80 | |||||
Beam Angle | 60°(UGR<16) / 90°(UGR<22) / 30×70° | |||||
ν Electrical | ||||||
Input Voltage | AC100~277V | |||||
Frequency | 50/60Hz | |||||
Power Factor | ≥0.95 | |||||
THD | <15% | |||||
Driver Brand | Inventronics/Sosen | |||||
Dimmability(Opt.) | 0/1-10V / DALI | |||||
ν Mechanical | ||||||
Housing Material | Extruded aluminum 6063 | |||||
Surface Finish | Anodized | |||||
Lens Material | Polycarbonate(PC) | |||||
Fixture Size(L*W*Hmm) | 450*178*91 | 900*178*91 | ||||
ν Environmental | ||||||
Ingress Protection | IP65 | |||||
Impact Protection | IK08 | |||||
Ambient Temperature | -40 ~ 50℃ | |||||
Storage Temperature | -50 ~ 60℃ | |||||
Lifespan(L70B10@25℃) | 50,000h |
¬ Dimensional Drawing
¬ Beam Angle
