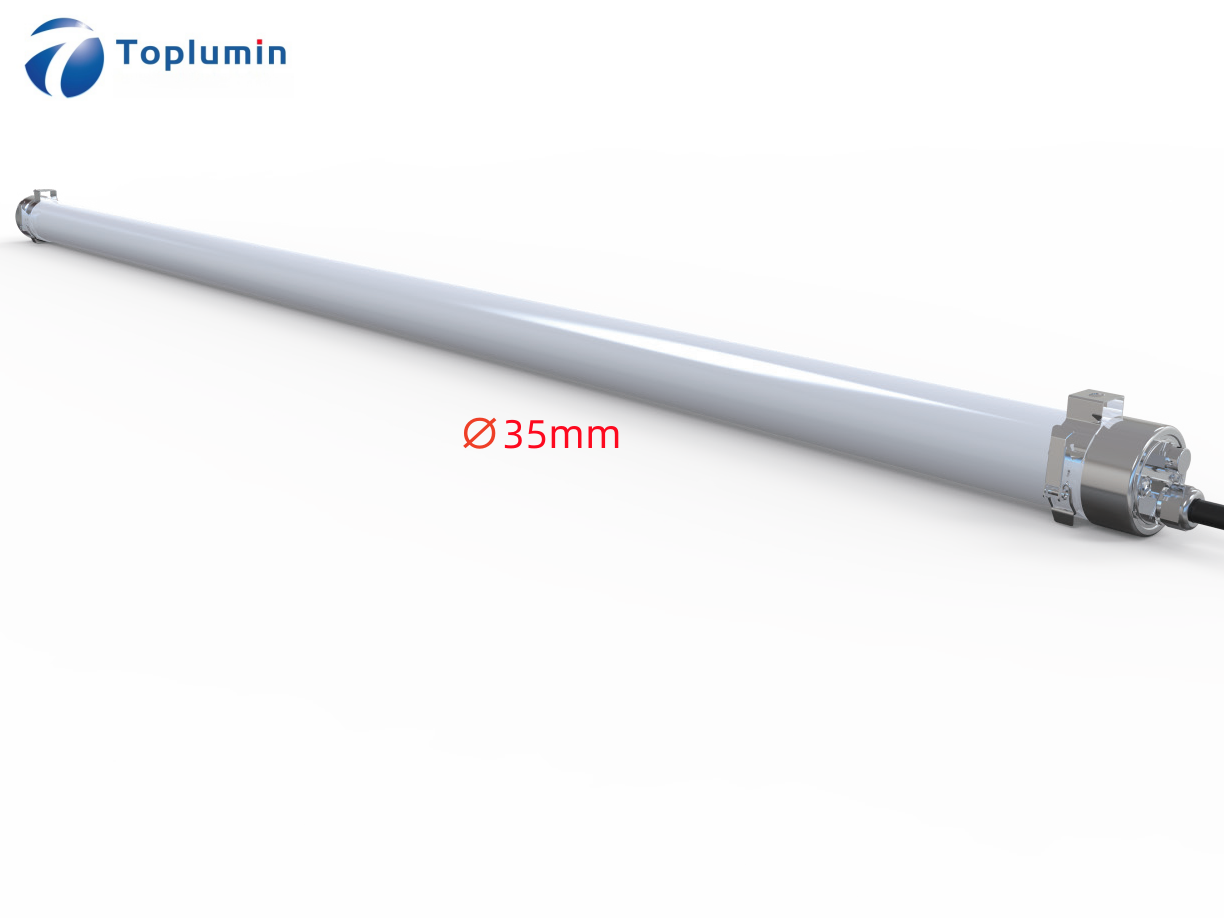

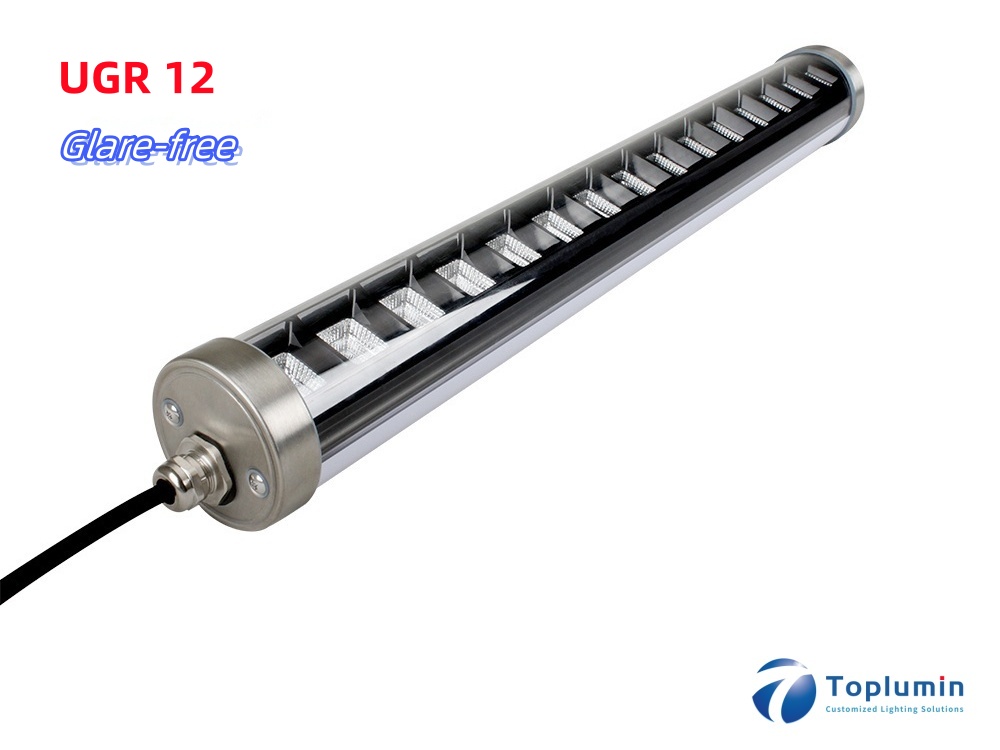

Tubular LED Tri-proof Light IP69K- HIGHRate

Short Description:

• Tubular LED tri-proof light features the industry highest IP69K rating, which can withstand high pressure water washdown, simple jet cleaning.

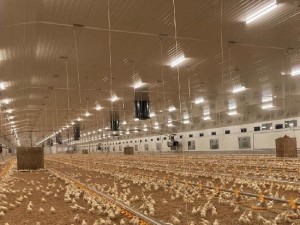

• Corrosion and UV resistant with 94V-0 PC or PMMA housing. 850ºC glow wire tested for flame resistant. Ammonium-resistant, suitable for poultry and livestock applications.

• Equipped with breather valve to prevent condensation in extreme low temperature conditions.

• S316 components and buckled mounting plate, easy installation due to free to positioning.

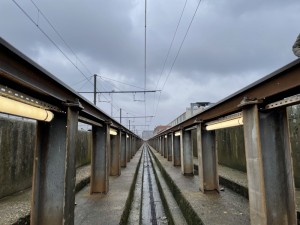

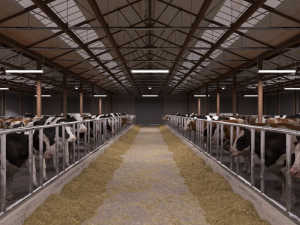

• Suitable for both indoor and outdoor applications, such as car wash shop, underground tunnel, swimming pool.

Product Detail

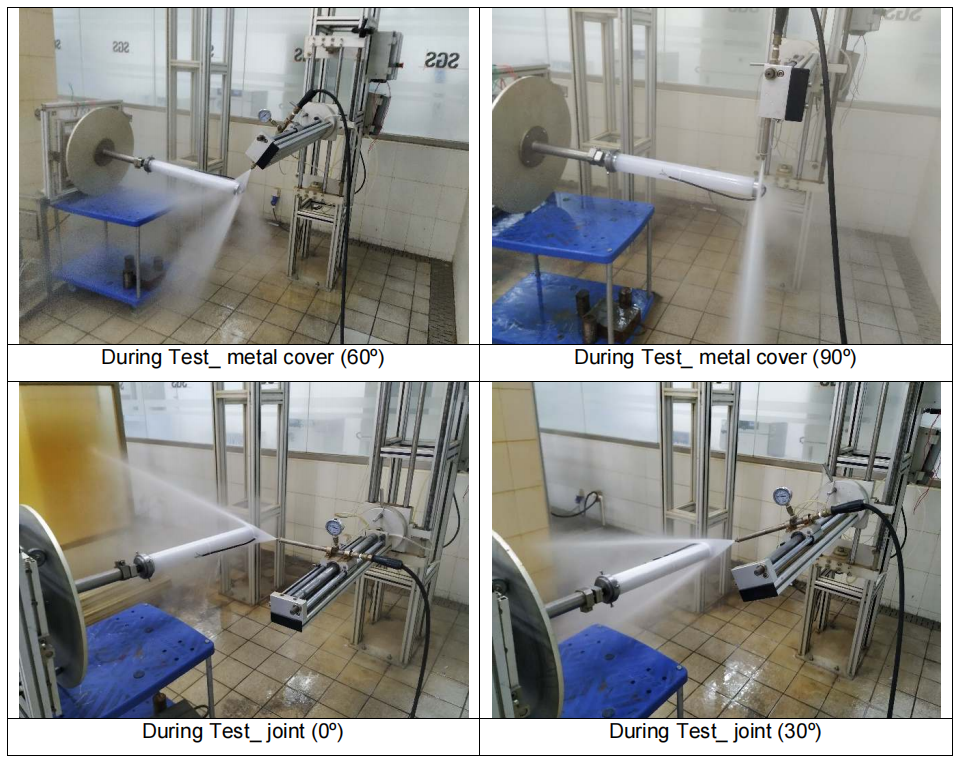

IP69K tri-proof LED light waterproofing test

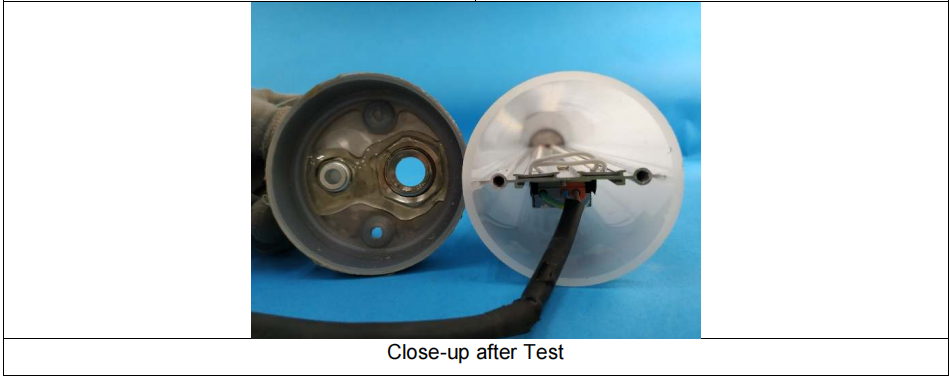

IP69K tri-proof LED light SGS test report

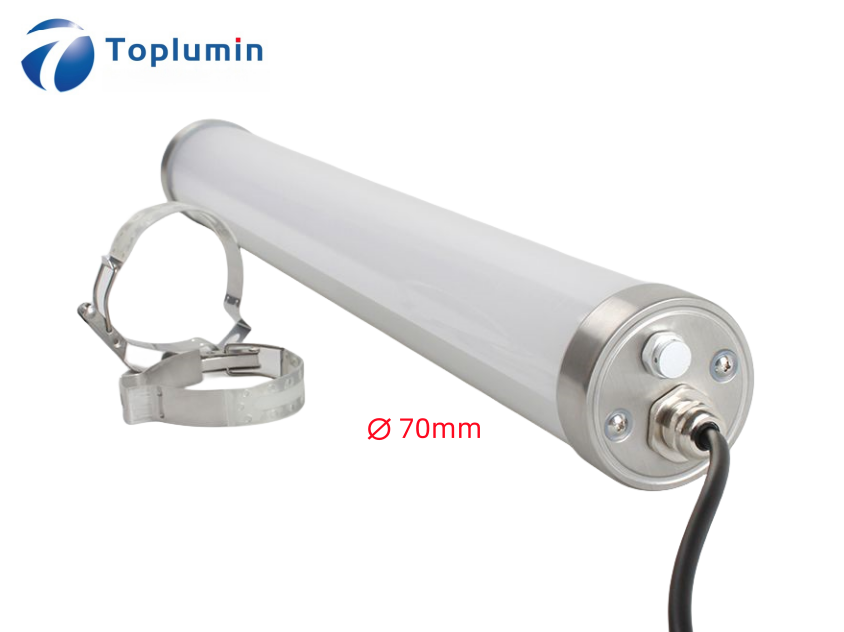

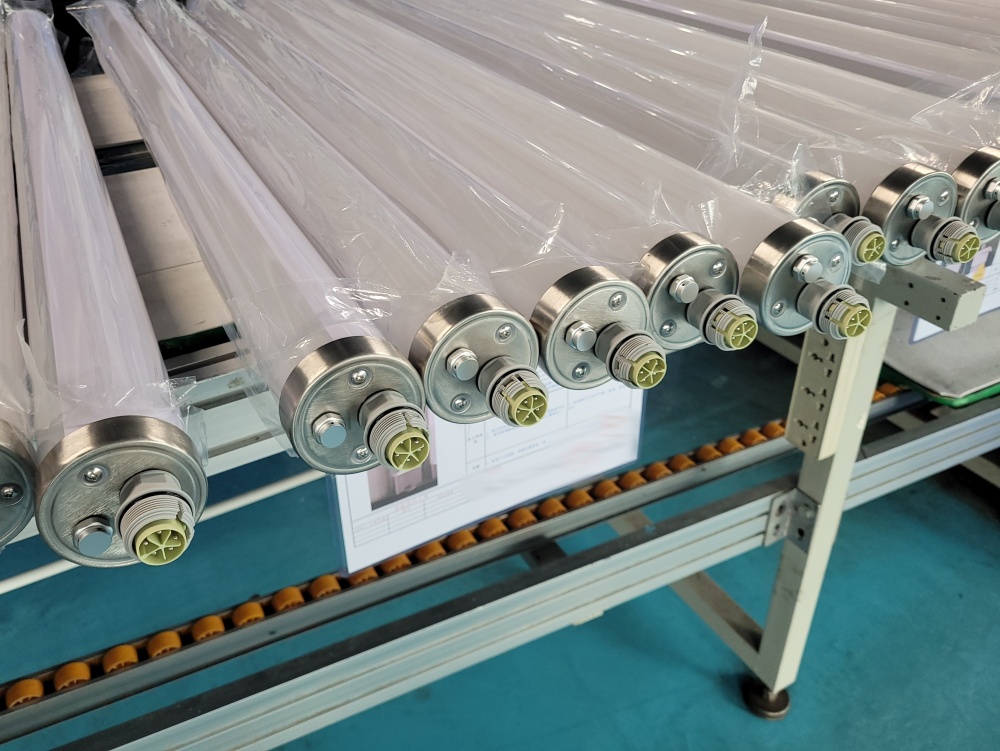

IP69K tubular LED light with 5 pin connector

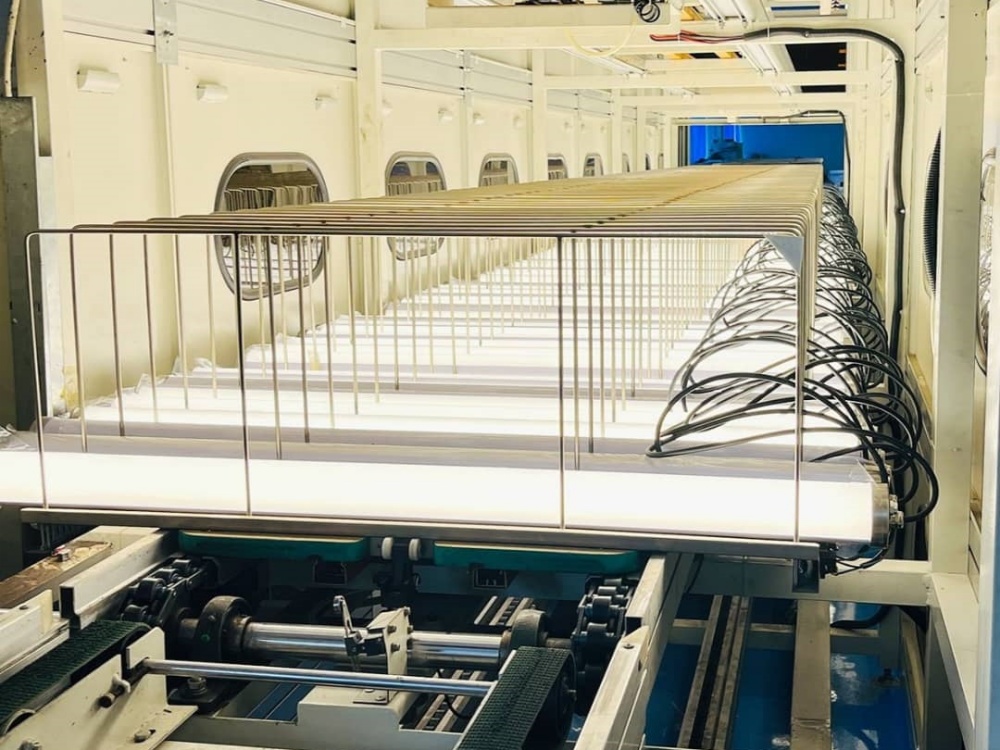

IP69K tri-proof LED light aging test in China factory

¬ Technical Data

Model No.		TL-3F-HRS2-10	TL-3F-HRS4-20	TL-3F-HRS5-30	TL-3F-HR4-40	TL-3F-HR4-50	TL-3F-HR5-50	TL-3F-HR5-60
ν Optoelectronic
Rated Power		10W	20W	30W	40W	50W	50W	60W
System Efficacy(±5%)	Normal	130lm/W
	Pro	145lm/W
Luminous Flux(±5%)			2,600lm	3,900lm	5,200lm	6,500lm	6,500lm	7,800lm
			2,900lm	4,350lm	5,800lm	7,250lm	7,250lm	8,700lm
Color Temperature(CCT)		3000K / 4000K / 5000K / 6000K
Color Rendering Index		Ra>80
Beam Angle		120°
ν Electrical
Input Voltage		AC200~240V/100~277V
Frequency		50/60Hz
Power Factor		≥0.95
THD		<15%
Dimmable(Opt.)		0/1-10V / DALI
Sensor Type(Opt.)		PIR / Microwave
Emergency Lighting Time(Opt.)		1.5h / 3h
ν Mechanical
Housing Material		PC(94V-0) / PMMA
Housing Color		Milky / Clear
Endcap Material		SUS 316
Fixture Size(L*Ømm)		600*40	1200*40	1500*40	1200*75		1500*75
Net Weight(Kg)
Qty./Carton(pcs)
Carton Size(cm)
ν Environmental
Ingress Protection		IP69K

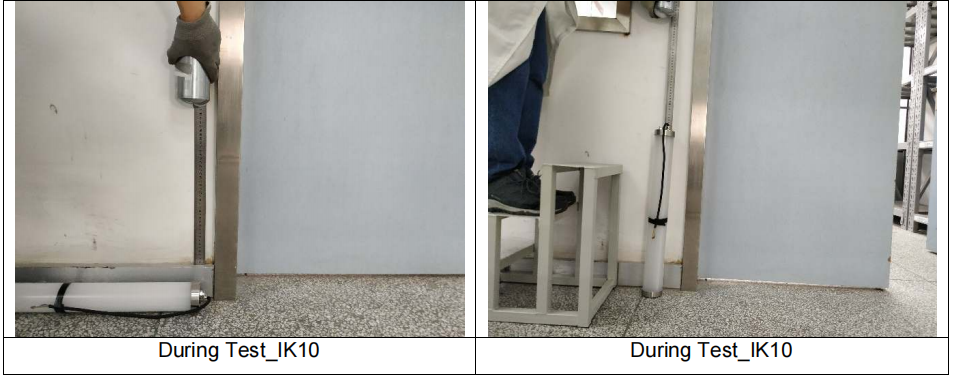

Impact Protection		IK10
Ambient Temperature		-20℃ ~ 40℃
Storage Temperature		-30℃ ~ 50℃
Expected Lifespan(L80B10@25℃)		50,000h
