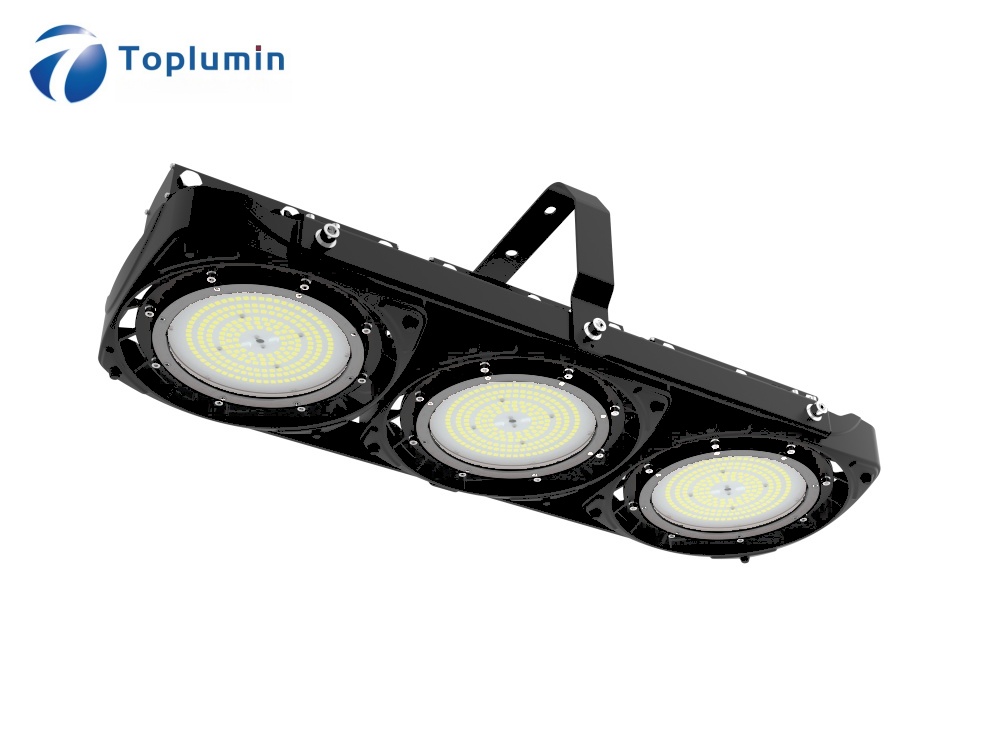

Heat Resistant LED High Bay Light- HEATFlow
¬ Technical Data
| ν Optoelectronic | |||||||
| Model No. | TL-RHB-HF1-100 | TL-RHB-HF1-150 | TL-RHB-HF2-200 | TL-RHB-HF2-300 | TL-RHB-HF3-400 | TL-RHB-HF4-500 | TL-RHB-HF4-600 |
| Rated Power | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
| System Efficacy(±5%) | 150lm/W | ||||||
| Luminous Flux(±5) | 15,000lm | 22,500lm | 30,000lm | 45,000lm | 60,000lm | 75,000lm | 90,000lm |
| Color Temperature(CCT) | 3000K/4000K/5000K/5700K/6500K | ||||||
| Color Rendering Index | Ra>80 | ||||||
| Beam Angle | 120° | ||||||
| LED Type | EMC 5050/3535/3030 | ||||||
| ν Electrical | |||||||
| Input Voltage |
AC120-277V / AC277-480V
|
||||||
| Frequency | 50/60Hz | ||||||
| Power Factor | ≥0.95 | ||||||
| THD | <15% | ||||||
| Driver Brand | Meanwell | ||||||
| Dimmable(Opt.) | 0/1-10V / DALI | ||||||
| ν Mechanical | |||||||
| Enclosure Material | Aluminum | ||||||
| Heat Sink Material | Cold forging aluminum AL1070 | ||||||
| Surface Finish | Powder coated | ||||||
| Cover Material | Tempered glass | ||||||
| Qty/Carton(pcs) | 1 | ||||||
| Carton Size(mm) |
510x450x415
|
780x510x415 |
1115x510x415
|
855x780x415 | |||
| Net Weight(Kg) |
8
|
16 | 25 | 32.5 | |||
| Gross Weight(Kg) |
10
|
18 | 27 | 35 | |||
| ν Environmental | |||||||
| Ingress Protection | IP66 | ||||||
| Impact Protection | IK09 | ||||||
| Ambient Temperature |
-40°C to 70°C
|
||||||
| Storage Temperature | -50℃ ~ 70℃ | ||||||
| Lifespan(L90B10@25℃) | 50,000h | ||||||
¬ Dimensions
¬ Beam Angle
¬ Installation
¬ Accessories
| # | Optional Feature | Value or Description |
| 1 | Custom Power | 400W / 600W / 800W / 1200W / 1800W |
| 2 | Higher Voltage | 347V / 480V |
| 3 | Dimmability | 0-10V / DMX / DALI-2 |
| 4 | Sensors or Control | Daylight Sensor, Remote Control |
| 5 | Lamp Shield | Anti-glare |
| 6 | Laser Touch | Light Positioning |
