Modular LED Sports Light High Power- LEVELUp

Short Description:

 Die-cast ADC12 aluminum alloy luminaire heat sink and bracket, light weight, stable and corrosion-resistant.

• Individually adjustable LED module and adjustable fixture bracket, directing the light flexibly and precisely by using laser aiming device.

• Whole piece of UV-resistant PC lens, high light transmittance and better waterproof ability. IP66 and IK10.

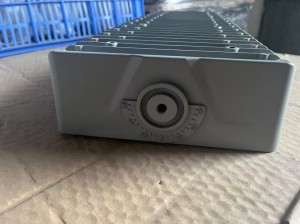

• Breathing valve is applied on each LED module to avoid condensation by balancing the internal and external air pressure.

• Improved light uniformity by professional lens design and selected LEDs(SDCM≤4), Ra>90 is available for premium light quality.




Product Detail

More Options

Technical Data

Model No.  TL-SL-LU1-500 TL-SL-LU2-1000        TL-SL-LU3-1500
Optoelectronic
Rated Power                   500W 1000W 1500W
Luminous Efficacy(±5%) 150lm/W
Luminous Flux(±5%)
75,000lm 150,000lm 225,000lm
Color Temperature(CCT) 4000K / 5000K / 5700K / 6500K
Color Rendering Index(Ra)  ≥80
Beam Angle
10°/20°/40°/60°/90°/90*25°
Electric
Input Voltage AC100-240V / AC110-277V
Input Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Surge Protection 20Kv
Dimmability(Optional) 0-10V / DALI
Mechanical
Product Size
647×393×290mm
761×593×626mm
761×593×698mm
Housing Material  Aluminum Alloy  ADC12
Surface Finish Powder Coated
Lens Material Polycarbonate(PC)
Environmental
Ingress Protection   IP66
Impact Protection IK10
Ambient Temperature   -40 ~ +50℃
Storage Temperature  -50 ~ +70℃
Lifespan(L90B10@25℃)  50,000h



Dimensions

LED stadium light product size
LED stadium light fixture dimensions

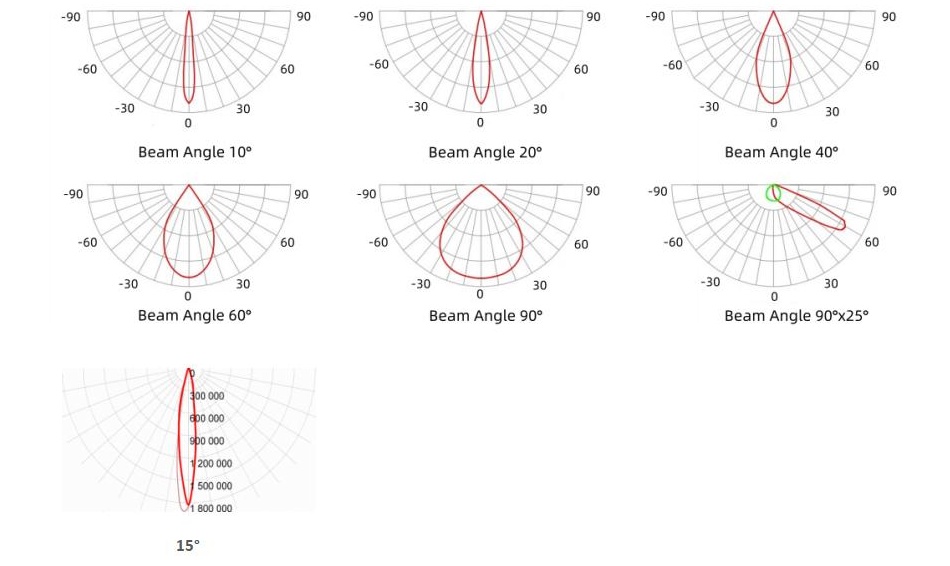

Light Distribution Curve

LED sports light fixture beam angles

Installation

LED stadium luminaire fixture installation drawings
LED stadium light installation methods

  • Previous:
  • Next:

  • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2

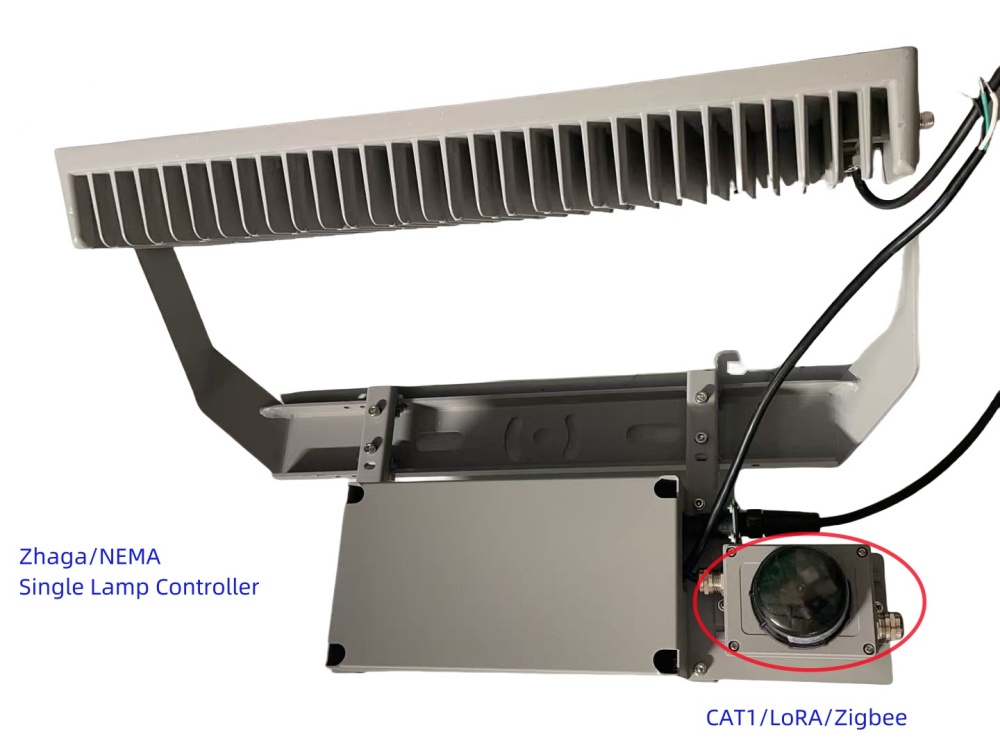

    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
