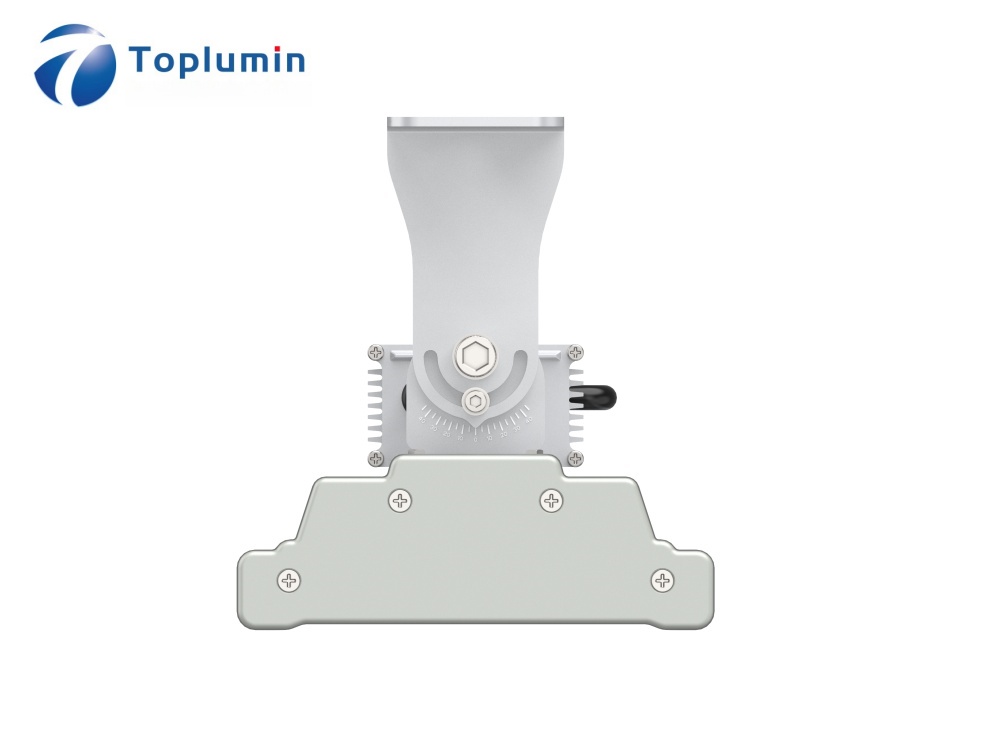

Linear LED Tunnel Light Glare Free- LUXStream
¬ Technical Data
| Model No. | TL-TL-LS3.2-30 | TL-TL-LS3.2-60 | TL-TL-LS4-80 | TL-TL-LS4-100 | TL-TL-LS4-120 | TL-TL-LS5-150 | TL-TL-LS5-200 |
| Optoelectronic | |||||||
| Rated Power | 30W | 60W | 80W | 100W | 120W | 150W | 200W |
| Luminous Efficacy(±5%) | 130lm/W | ||||||
| Luminous Flux(±5%) |
3,900lm | 7,800lm | 10,400lm | 13,000lm | 15,600lm | 19,500lm | 26,000lm |
| Color Temperature(CCT) | 4000K / 5000K / 5700K / 6500K | ||||||
| Color Rendering Index | Ra>70 | ||||||
| Beam Angle |
110°
|
||||||
| Light Source |
2835 / 3030
|
||||||
| Electrical | |||||||
| Input Voltage | AC100~277V | ||||||
| Input Frequency | 50/60Hz | ||||||
| Power Factor | ≥0.95 | ||||||
| THD | <15% | ||||||
| Surge Protection(optional) | 10kV / 20kV | ||||||
| Driver Brand | Inventronics/Moso | ||||||
| Dimmability(optional) | 0-10V / DALI |
||||||
| Mechanical | |||||||
| Housing Material | Die cast aluminum ADC12 | ||||||
| Surface Finish | Powder coated | ||||||
| Lens Material | Polycarbonate(PC) | ||||||
| Fixture Size(mm) | 1000*150*160 | 1200*150*160 | 1500*150*160 | ||||
| Environmental | |||||||
| Ingress Protection | IP65 |
||||||
| Impact Protection | IK08 | ||||||
| Ambient Temperature | -40 ~ 45℃ | ||||||
| Storage Temperature | -55 ~ 60℃ | ||||||
| Lifespan(L90B10@25℃) | 50,000h | ||||||
¬ Dimensional Drawing
¬ Light Distribution
| # | Optional Feature | Value or Description |
| 1 | Custom Power | 400W / 600W / 800W / 1200W / 1800W |
| 2 | Higher Voltage | 347V / 480V |
| 3 | Dimmability | 0-10V / DMX / DALI-2 |
| 4 | Sensors or Control | Daylight Sensor, Remote Control |
| 5 | Lamp Shield | Anti-glare |
| 6 | Laser Touch | Light Positioning |
