Multi-channel High PPE LED Top Grow Light- RHYield

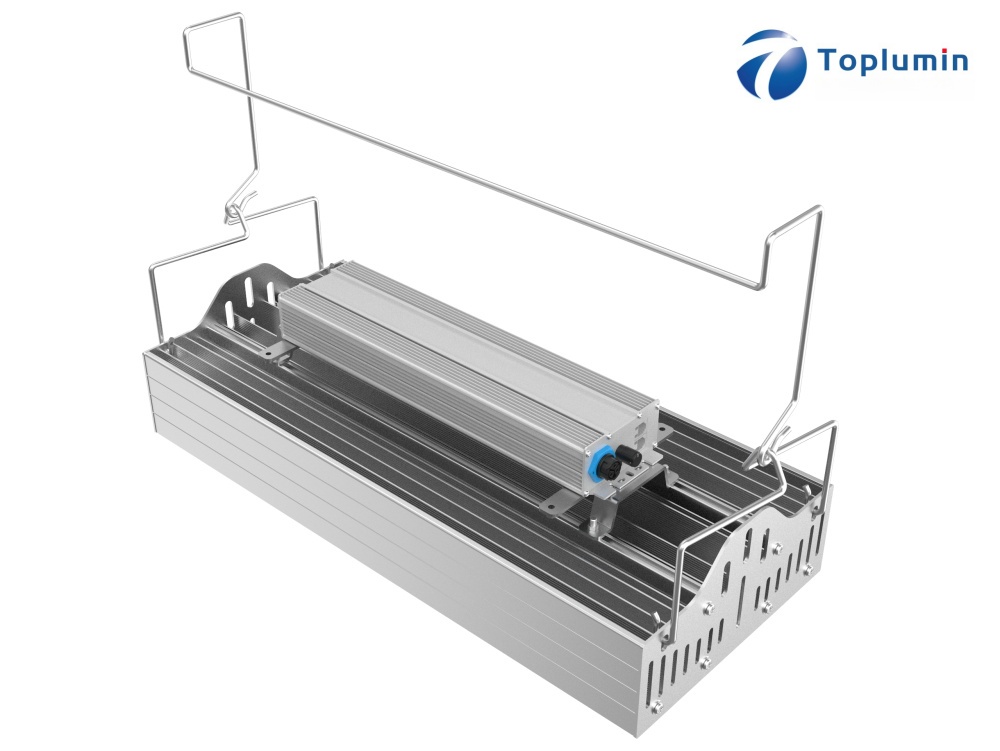

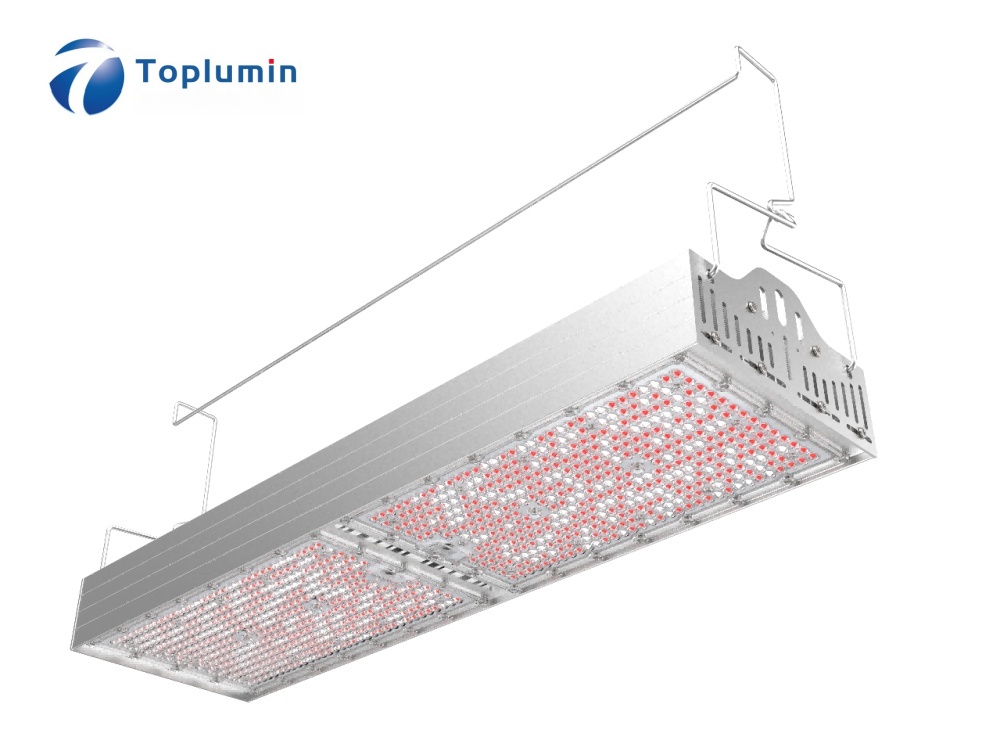

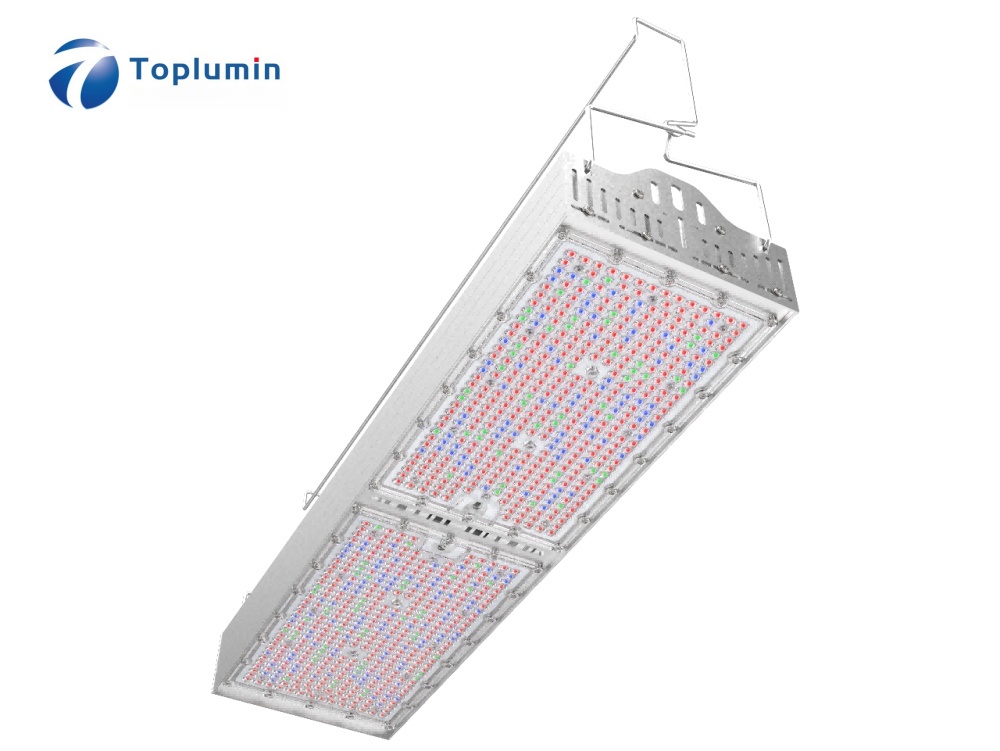

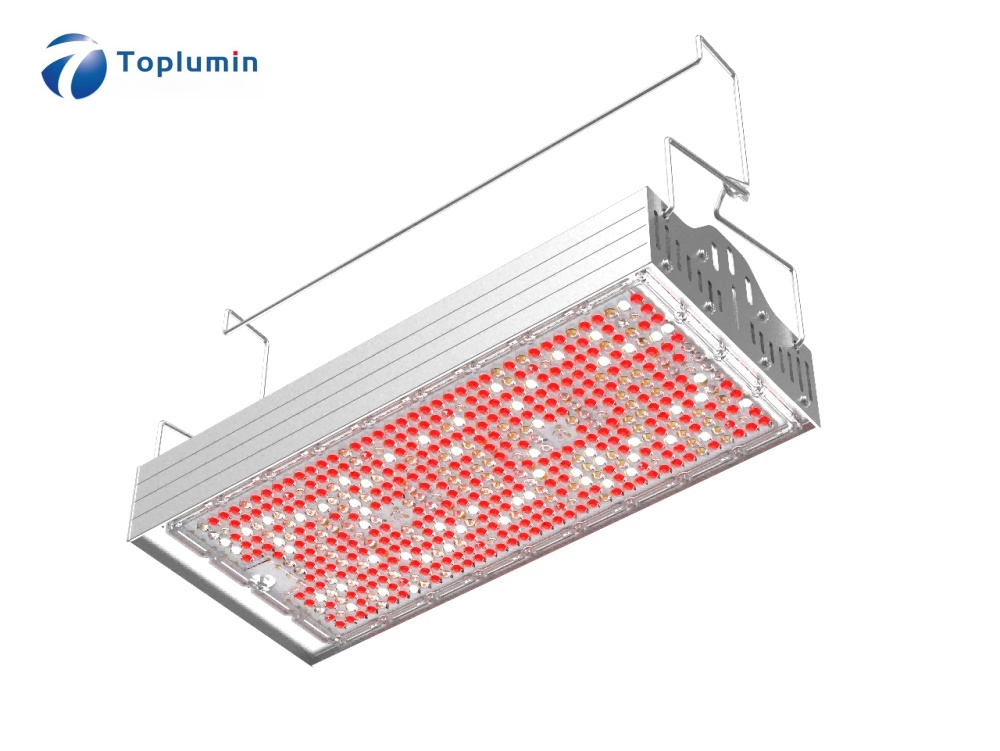

Multi-channel High PPE LED Top Grow Light- RHYield Featured Image
  • Multi-channel High PPE LED Top Grow Light- RHYield
  • Multi-channel High PPE LED Top Grow Light- RHYield

Short Description:

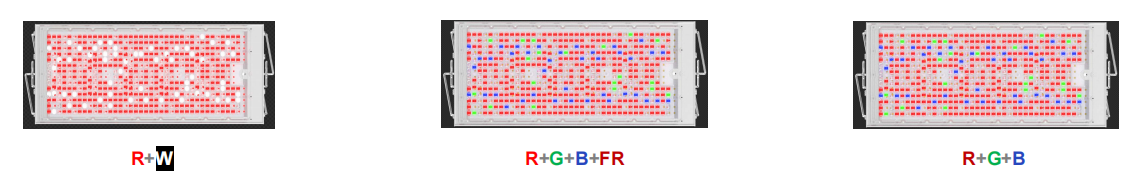

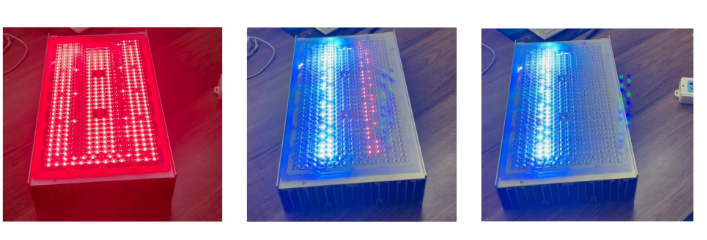

• Multiple outputs and branch control allow to customize the spectral ratios needed for different plants during different growing period.

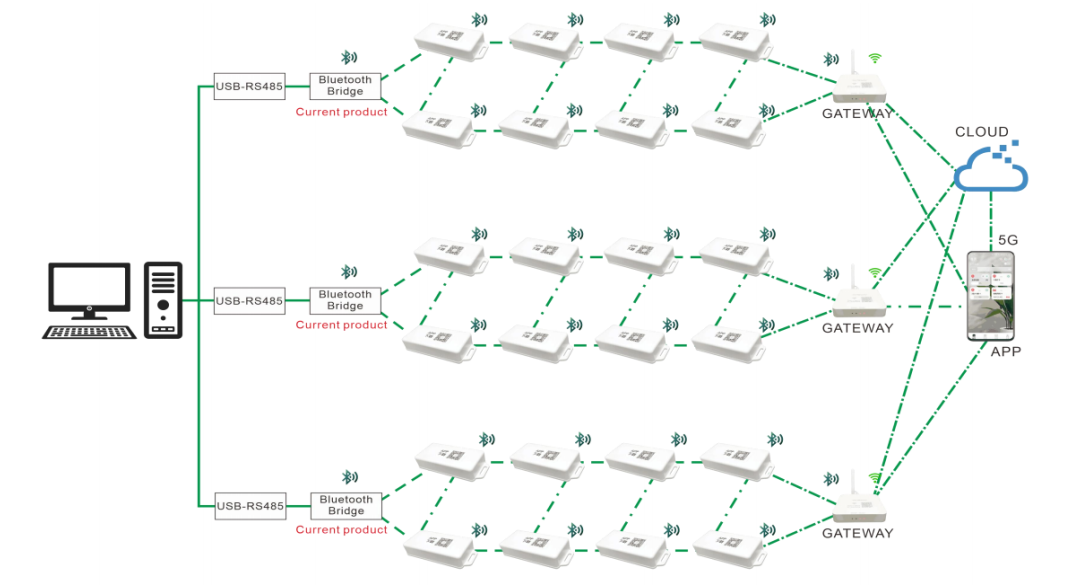

• Dynamically adjustable spectral ratios in real time by working with smart controller according to the intensity of sunlight, meeting the needs of plant growth while reducing power further.

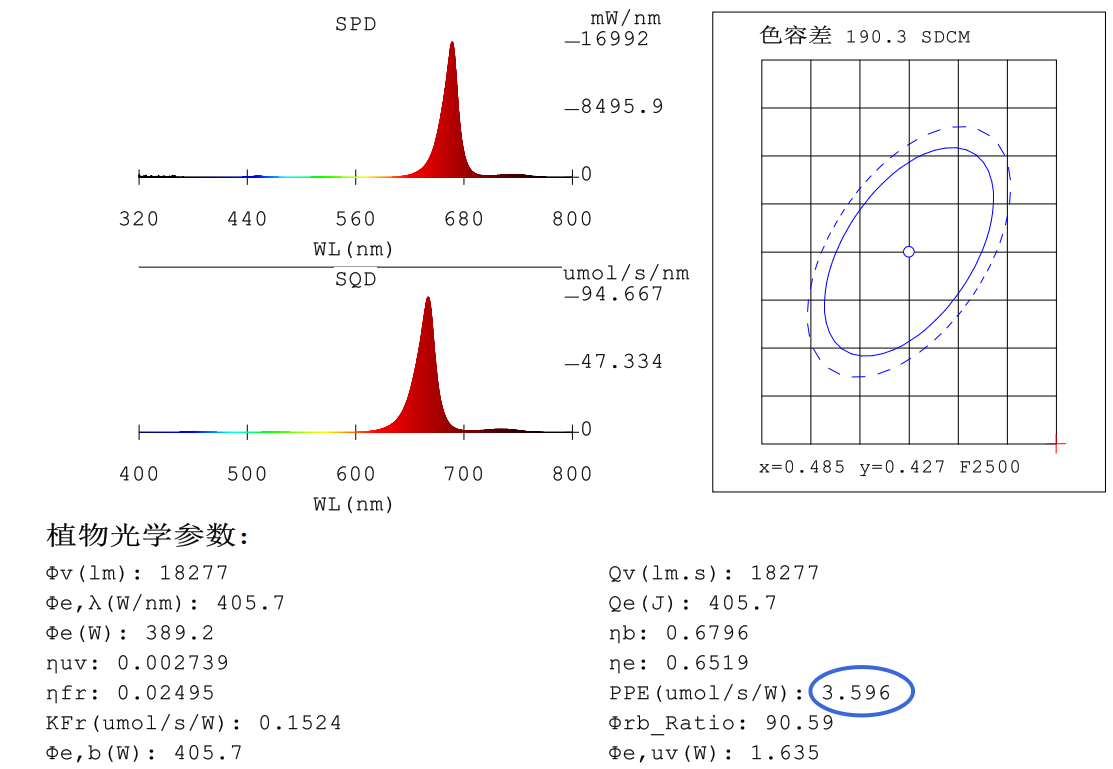

• Industry-leading efficiency PPE 3.6 μmol/J, 4.1 μmol/J premium version is available. Improve ROI by promoting vegetables to grow faster and better.

• Optimized beam angle 100*140° to distribute light more evenly. Less number of lamps for a given area to reduce investment.

• Future-proof terminal connection design. Replace the PCBA only when renewal or upgrade is needed instead of the whole fixture.

Product Detail

More Options

¬ Technical Data

ν Optoelectronic
Model No. TL-UHB-FD-100  TL-UHB-FD-150  TL-UHB-FD-200  TL-UHB-FD-240
Adjustable Power 100-80-50W 150-100-80W 200-150-100W  240-200-150W
System Efficacy 150lm/W
Luminous Flux 7,500-15,000lm 12,000-22,500lm 15,000-30,000lm 22,500-36,000lm
Fixed CCT
3000K/4000K/4500K/5000K/6000K
Tunable CCT 3000K-4500K-6000K / Customizable
Color Rendering Index Ra>70 / Ra>80
Beam Angle 60° / 90° / 110°
ν Electrical
Input Voltage 120~277 / 200~240 / 120~347VAC
Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Surge Protection(Built-in) 6kV Line-to-Line, 6kV Line-to-Earth
Driver Brand Sosen / Moso
Dimmable 1-10V(Std.) / DALI
Motion Sensor(Opt.) PIR / Microwave
ν Mechanical
Housing Material Die-casting aluminum  ADC12
Surface Finish Powder coated
Lens Material Polycarbonate(PC)
Fixture Size(mm) ∅246*133 ∅246*133 ∅288*133
∅329*137mm
ν Environmental
Ingress Protection   IP65
Impact Protection IK08
Ambient Temperature -40℃ ~ 45℃
Storage Temperature -45℃ ~ 50℃
Operating Humidity 85% max.
Storage Humidity 85% max.
Lifespan(L80B10@25℃) 50,000h



Power selectable UFO LED high bay
Fin design UFO LED high bay

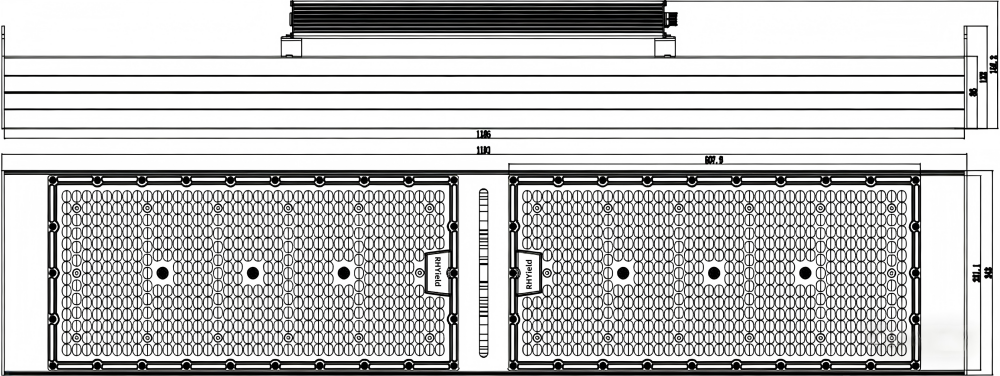

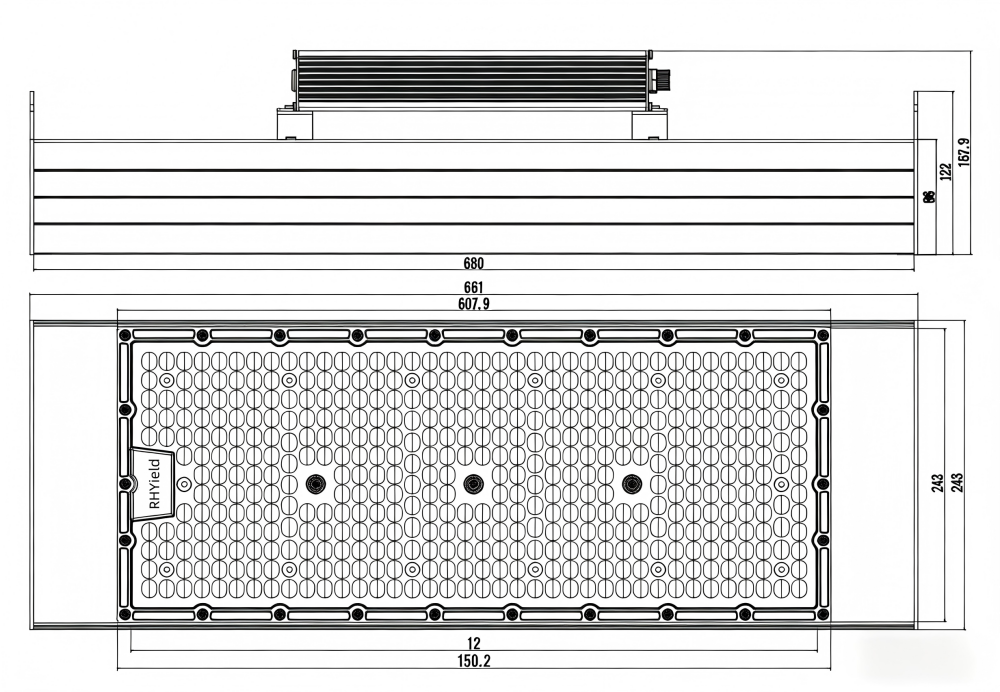

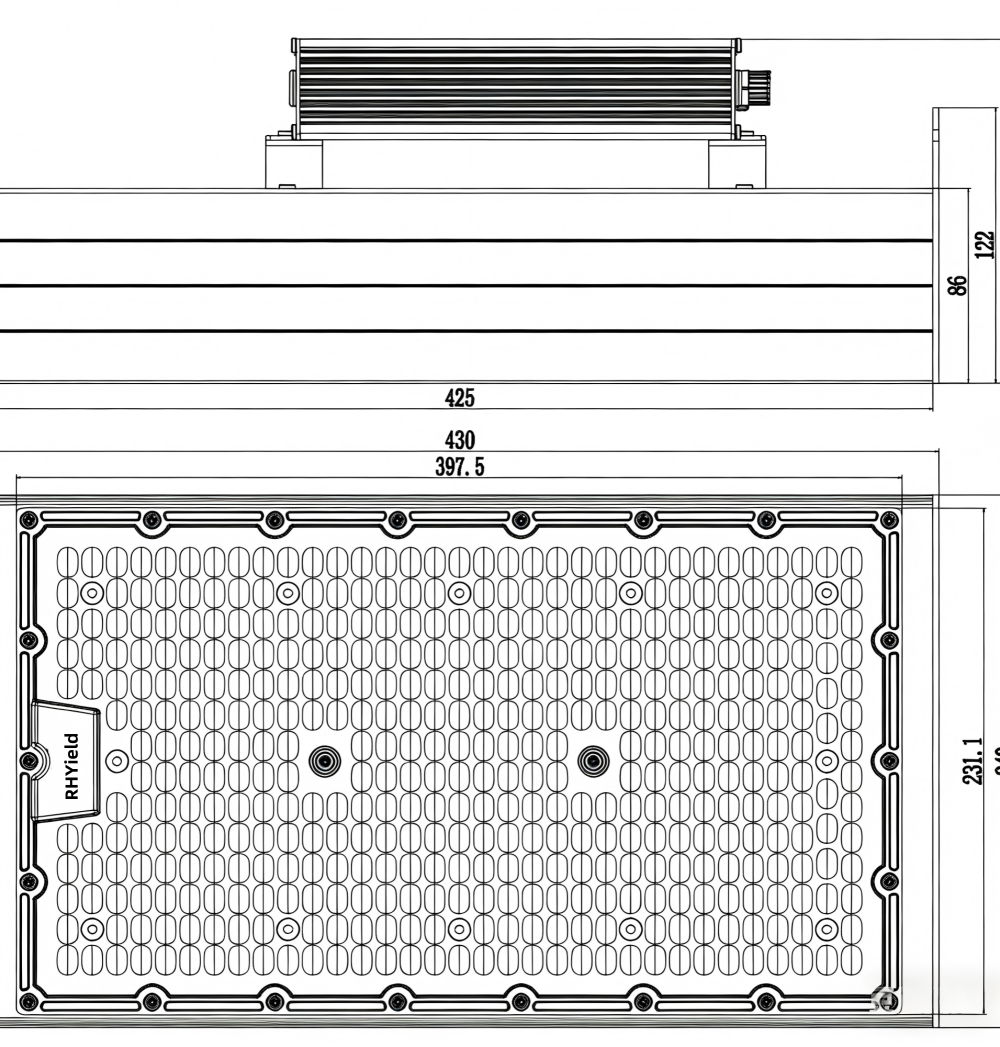

¬ Dimensions

150W UFO LED High Bay Line Drawing

                   100/150W

200W UFO LED High Bay Dimensional Line Drawing

                    200W

240W UFO LED High Bay Dimensional Line Drawing

                          240W

¬ Light Distribution

UFO LED high bay 100W luminous intensity distribution diagram

100W

UFO LED high bay 150W luminous intensity distribution diagram

150W

UFO LED high bay 200W luminous intensity distribution diagram

200W

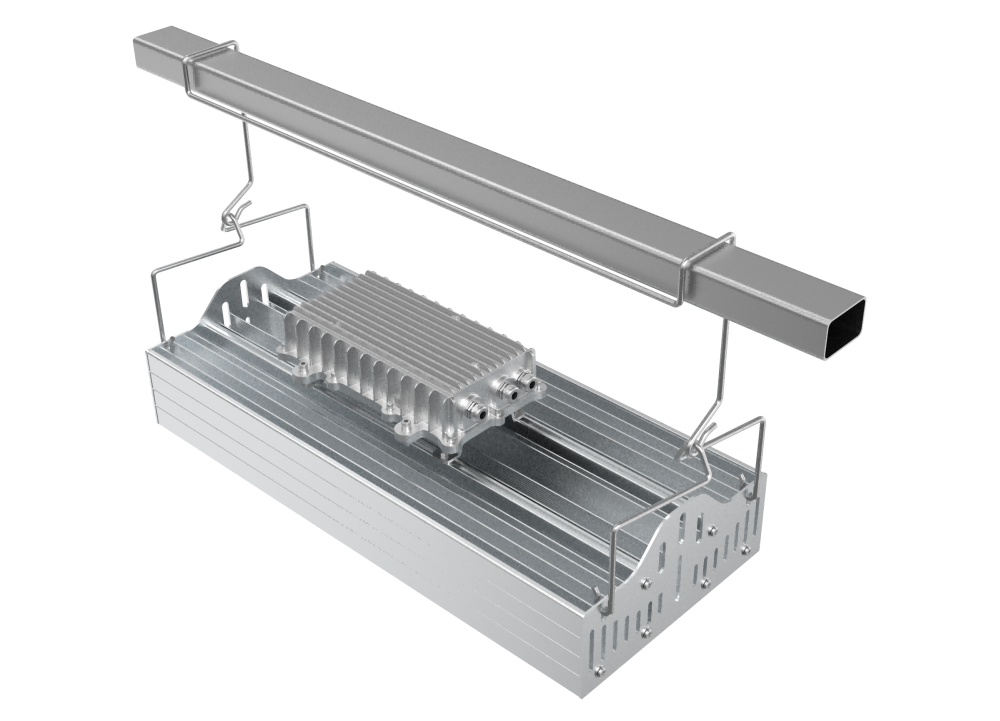

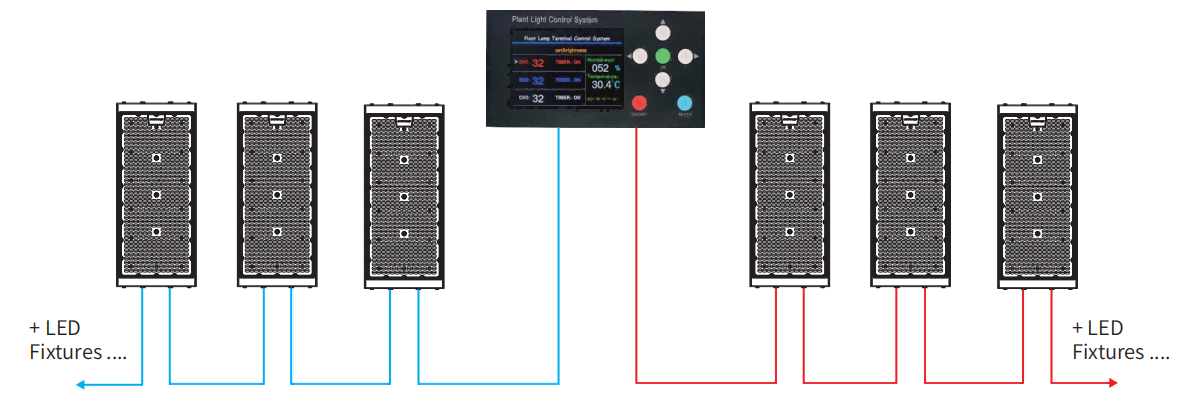

¬ Installation

UFO LED high bay installaion manual drawing
UFO led high bay installation line drawing

¬ Application

Tell us about your application, lux level, uniformity and UGR required, we'll have the engineering team make calculations to work out the professional lighting design with DIALUX.
UFO led high bay DIALUX lighting design
LED high bay housing kit SKD supplier
  • Previous:
  • Next:
    • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
