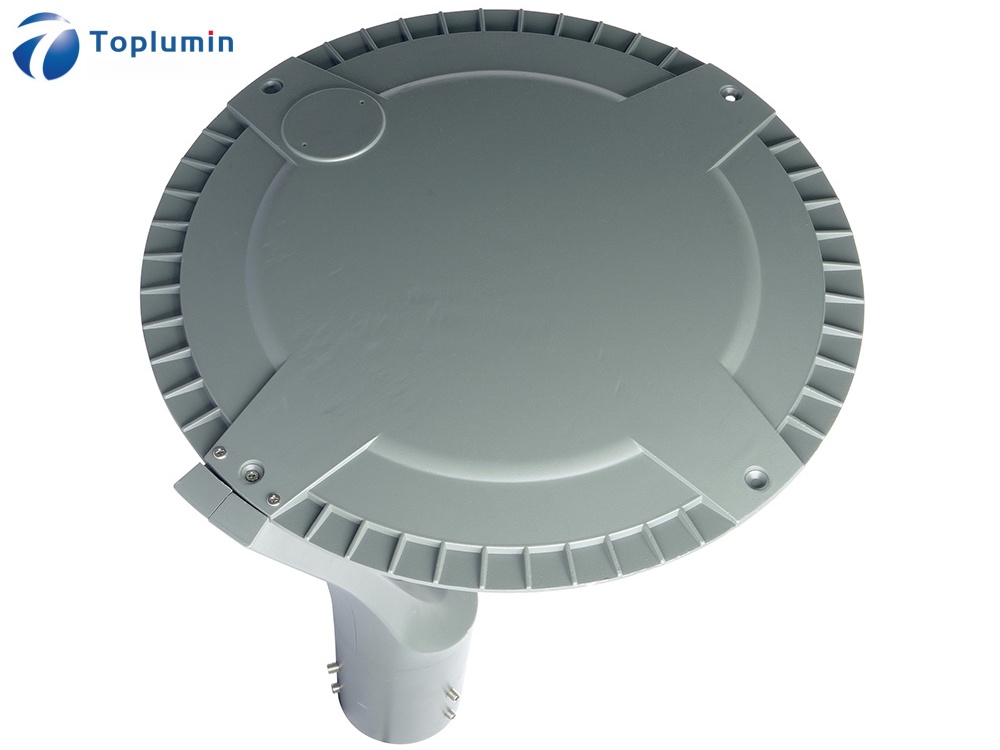

LED Post Top Lamp Glass Cover- PARKView

Short Description:

• Die-cast aluminum alloy lamp housing and fitter base with powder coated finish, resistant to chemical or atmospheric agents. IP66 rated to be weather-proof and against water from watering jet.

• UV-resistant PC lens combines tempered glass cover deliver diamond-clear light over its long lifespan.

• Tilted smooth top surface to prevent the accumulation of leaves and dust, not only keeps the appearance aesthetically clean, but also constantly efficient heat dissipation to ensure the long service life of the LED post top lamp in yard, garden, park or campus.

• Various of beam angle options with up to 170lm/W efficacy(opt.) to meet requirements of different light distribution and lux level, 120º, T2, T3, T4 and T5(140*140º).

• CCT tunable and power adjustable functions are available upon request.

Product Detail

More Options

¬ Technical Data

• Optoelectronic
Model No.	TL-PT-GV-25	TL-PT-GV-50	TL-PT-GV-75
Rated Power	25W	50W	75W
System Efficacy(±5%)	110lm/W
Luminous Flux(±5)	2,750lm	5,500lm	8,250lm
Color Temperature(CCT)	2200K/3000K/4000K/5000K
Color Rendering Index	Ra>70 / Ra>80(opt.)
CHROMATIC CONSISTENCY(SDCM)	≤6 / ≤4(opt.)
Beam Angle	120º
LED Type	3030(Lumileds)
• Electrical
Input Voltage	AC90~305V
Frequency	50/60Hz
Power Factor	≥0.95
THD	<15%
Surge Protection(Built-in)	10kV
Driver Brand	Meanwell
Dimmable(Opt.)	1-10V / DALI
• Mechanical
Housing Material	Die-cast aluminum ADC12
Surface Finish	Powder coated
Lens Material	UV-resistant Polycarbonate
Fixture Size(mm)	466445480
Carton Size(cm)	5551.551.5
Net Weight(Kg)	5.8	6.0	6.2
• Environmental
Ingress Protection	IP66
Impact Protection	IK08
Ambient Temperature	-30℃ ~ 50℃
Storage Temperature	-40℃ ~ 60℃
Lifespan(L90B10@Ta25℃)	50,000h

¬ Dimensional Drawing

Unit: mm

¬ Photometry

LED post top garden lamp 120 degree beam angle

120º

Previous: LED Street Light- BLACKFrame

Next: LED Conveyor Light- MINEPartner

#	Optional Feature	Value or Description
1	Custom Power	400W / 600W / 800W / 1200W / 1800W
2	Higher Voltage	347V / 480V
3	Dimmability	0-10V / DMX / DALI-2
4	Sensors or Control	Daylight Sensor, Remote Control
5	Lamp Shield	Anti-glare
6	Laser Touch	Light Positioning
