Short Description:

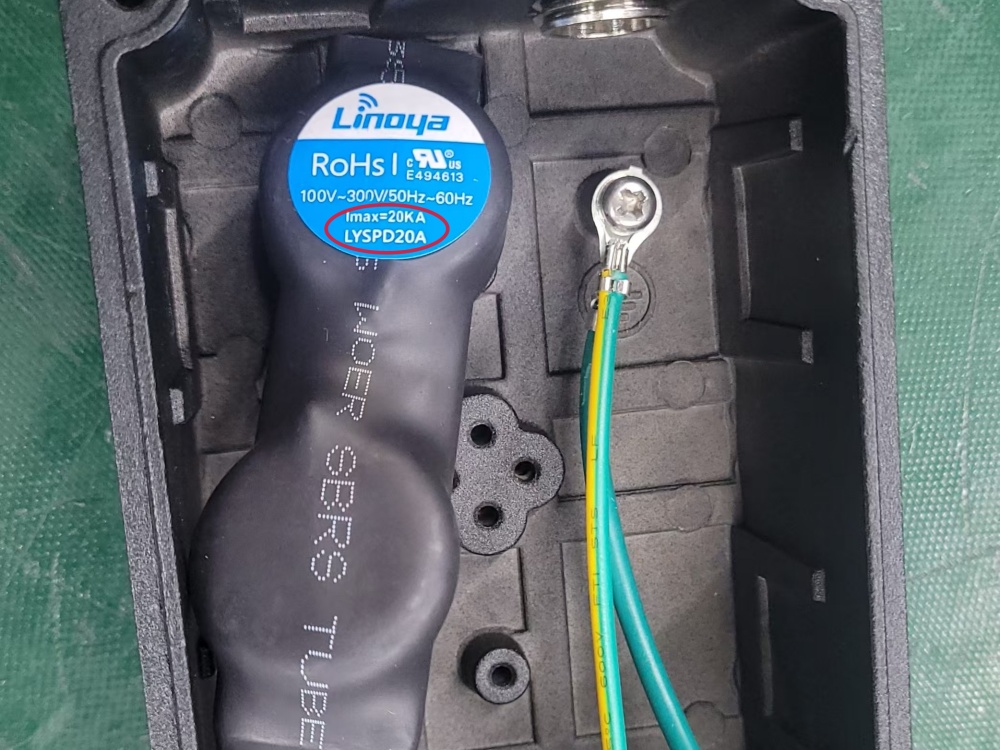

• Dual surge protection design(10kV Driver + 20kV SPD) to work reliably during heavy lightning weather condition, provding uninterruptive lighting for converyor belts.

• Robust die-casting ADC12 aluminum housing with AKZO powder coating(1,000h salt spray test), great anti-rusting to withstand frequent rain and sun exposure circles. UV-resistant PC lens provides dual-symmetrical light distribution.

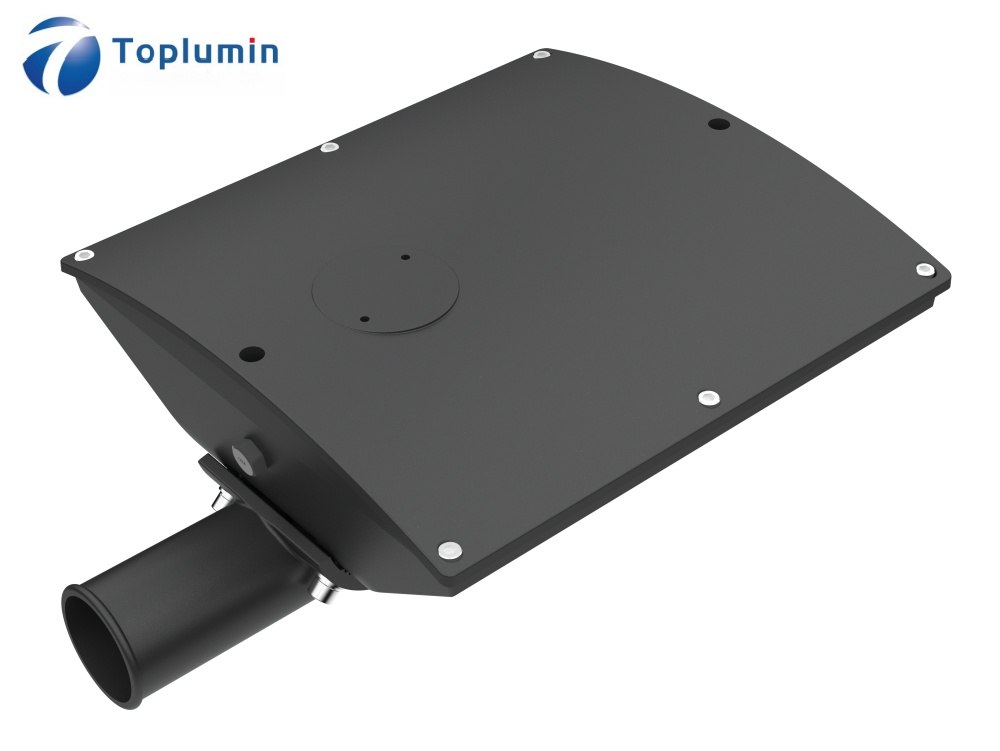

• Arc-shaped lamp back not only prevents the accumulation of gravels, but also enables rain and wind automatic cleaning. Extended service life of the LED conveyor light by keeping its surface clean to ensure constant and efficient heat dissipation,

• IP66 and IK08 rated with tempered glass cover, corrosion and impact resistant, suitable for vibrating convery belts.

• Specially designed for use in conveyors, walkways, mining processing plants, material washing and crushing, etc.

Product Detail

¬ Technical Data

• Optoelectronic
Model No.	TL-CV-MP-30	TL-CV-MP-36	TL-CV-MP-42	TL-CV-MP-62	TL-CV-SP-70
Rated Power	30W	36W	42W	62W	70W
System Efficacy(±5%)	165lm/W	162lm/W	158lm/W	155lm/W	150lm/W
Luminous Flux(±5)	4,950lm	5,832lm	6,636lm	9,610lm	10,500lm
Color Temperature(CCT)	3000K/4000K/5000K/5700K/6500K
Color Rendering Index	Ra>70 / Ra>80(opt.)
Beam Angle	Symmetrical 150° / Customized
LED Type	3030(Lumileds)
• Electrical
Input Voltage	AC100~277V / DC12/24V
Power Factor	≥0.90
Surge Protection	10kV / 20kV(opt.)
Driver Brand	Meanwell/Moso
Dimmable(Opt.)	0/1-10V
Sensing Function(Opt.)	Photocell Sensor/Controller
Emergency Power	5W
Emergency Lighting Time	3h
• Mechanical
Housing Material	Die-cast aluminum ADC12
Surface Finish	Powder coated
Lens Material	Anti-UV PC
Cover Material	Tempered glass
Fixture Size(mm)	290.0394.8151.8
Export Carton Size(cm)	423822
Gross Weight(Kg)	5.2
Mounting Pole Diameter (mm)	32-42
• Environmental
Ingress Protection	IP66
Impact Protection	IK08
Ambient Temperature	-40℃ ~ 50℃
Storage Temperature	-50℃ ~ 70℃
Operating Humidity	20% ~ 95%
Storage Humidity	10% ~ 80%
Lifespan(L80B10@25℃)	50,000h
