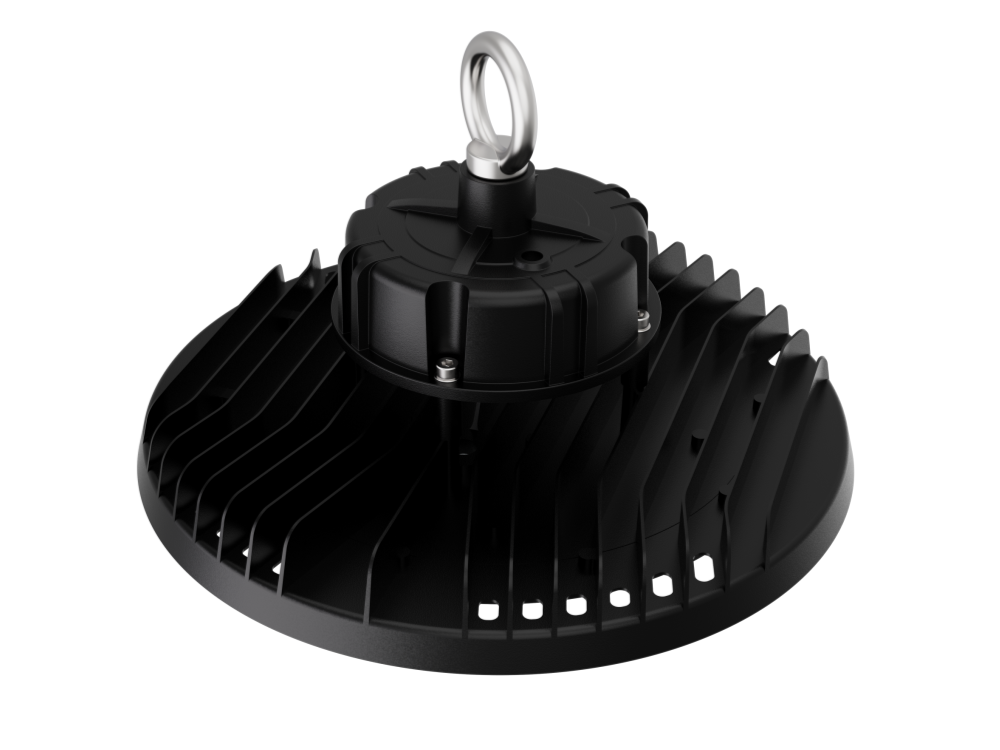

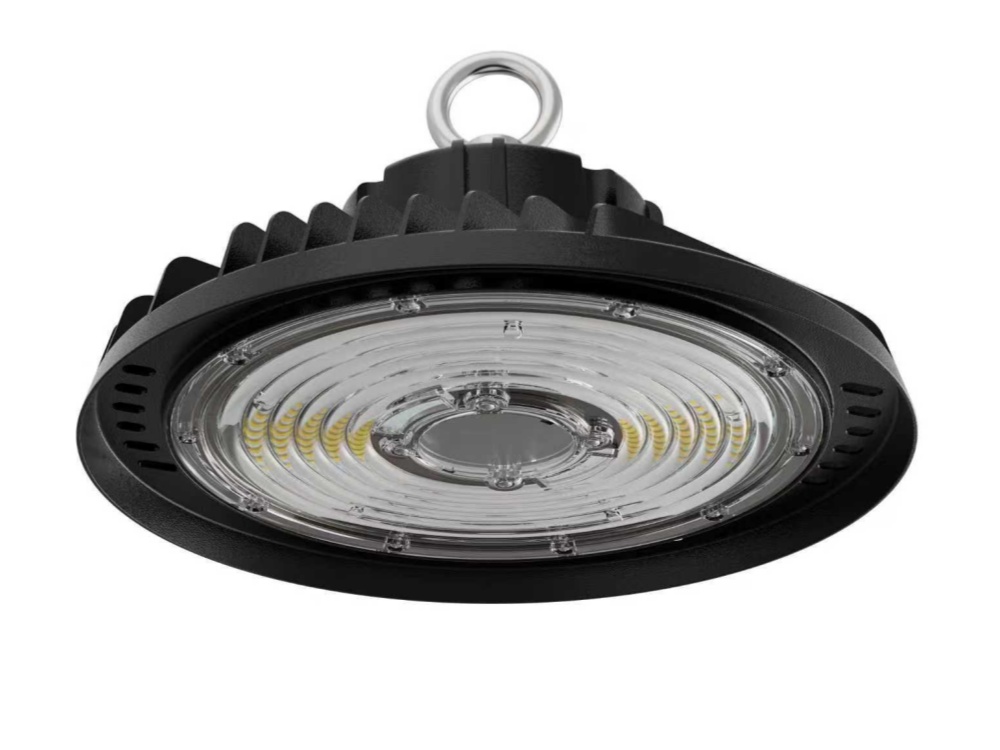

UFO LED High Bay Light- FINDo
¬ Technical Data
| ν Optoelectronic | ||||
| Model No. | TL-UHB-FD-100 | TL-UHB-FD-150 | TL-UHB-FD-200 | TL-UHB-FD-240 |

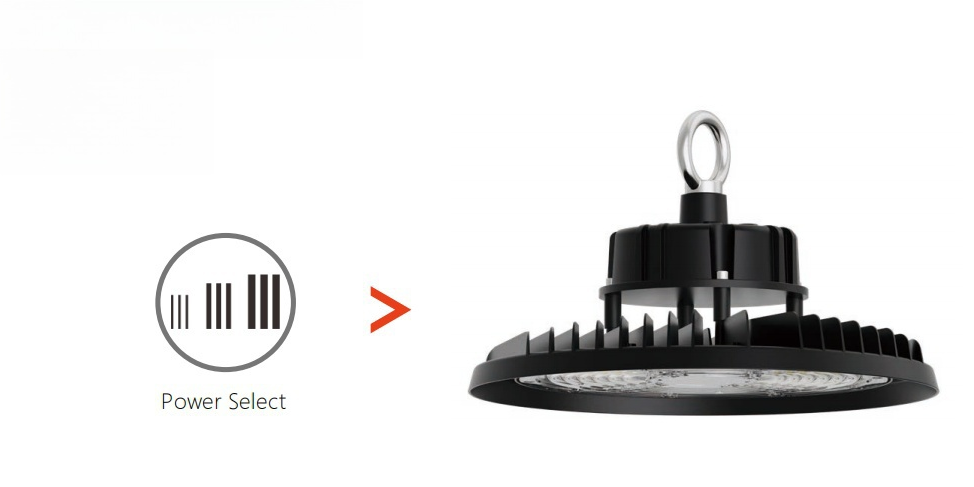

| Adjustable Power | 100-80-50W | 150-100-80W | 200-150-100W | 240-200-150W |
| System Efficacy | 150lm/W | |||
| Luminous Flux | 7,500-15,000lm | 12,000-22,500lm | 15,000-30,000lm | 22,500-36,000lm |
| Fixed CCT |
3000K/4000K/4500K/5000K/6000K
|
|||
| Tunable CCT | 3000K-4500K-6000K / Customizable | |||
| Color Rendering Index | Ra>70 / Ra>80 | |||
| Beam Angle | 60° / 90° / 110° | |||
| ν Electrical | ||||
| Input Voltage | 120~277 / 200~240 / 120~347VAC | |||
| Frequency | 50/60Hz | |||
| Power Factor | ≥0.95 | |||
| THD | <15% | |||
| Surge Protection(Built-in) | 6kV Line-to-Line, 6kV Line-to-Earth | |||
| Driver Brand | Sosen / Moso | |||
| Dimmable | 1-10V(Std.) / DALI | |||
| Motion Sensor(Opt.) | PIR / Microwave | |||
| ν Mechanical | ||||

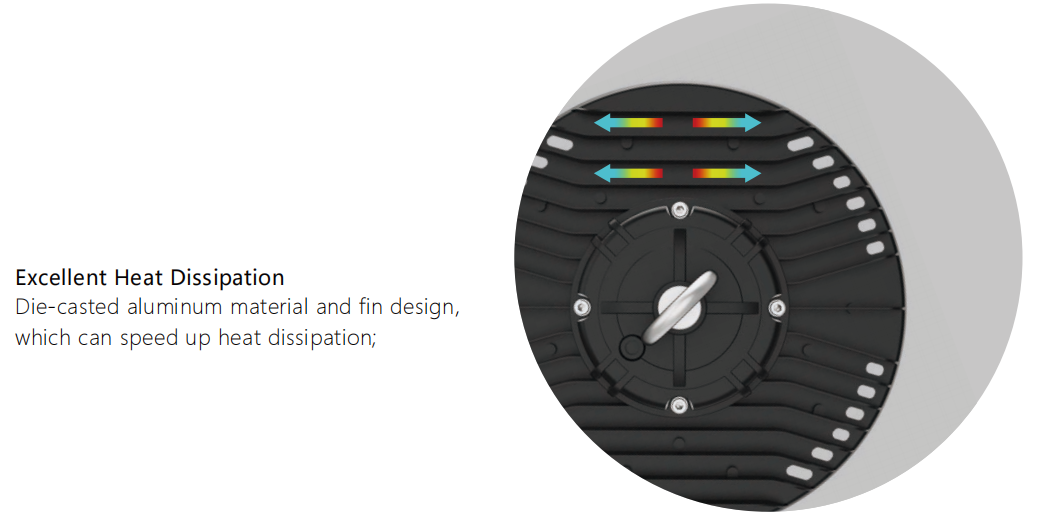

| Housing Material | Die-casting aluminum ADC12 | |||
| Surface Finish | Powder coated | |||
| Lens Material | Polycarbonate(PC) | |||
| Fixture Size(mm) | ∅246*133 | ∅246*133 | ∅288*133 |
∅329*137mm
|
| ν Environmental | ||||
| Ingress Protection | IP65 | |||
| Impact Protection | IK08 | |||
| Ambient Temperature | -40℃ ~ 45℃ | |||
| Storage Temperature | -45℃ ~ 50℃ | |||
| Operating Humidity | 85% max. | |||
| Storage Humidity | 85% max. | |||
| Lifespan(L80B10@25℃) | 50,000h | |||
¬ Dimensions
100/150W

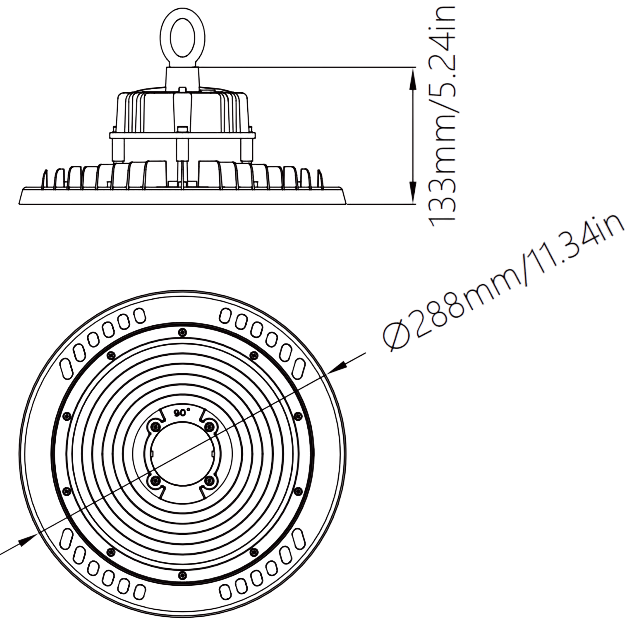

200W

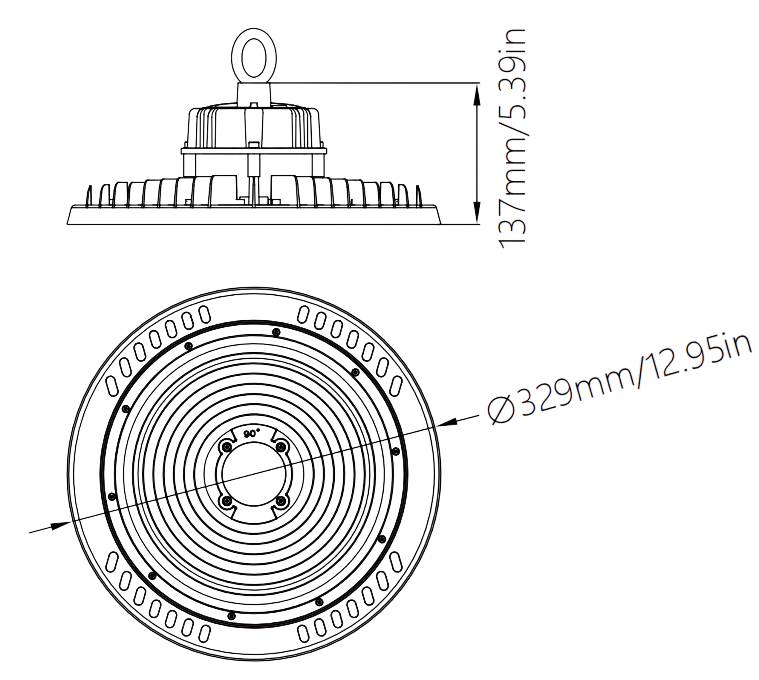

240W

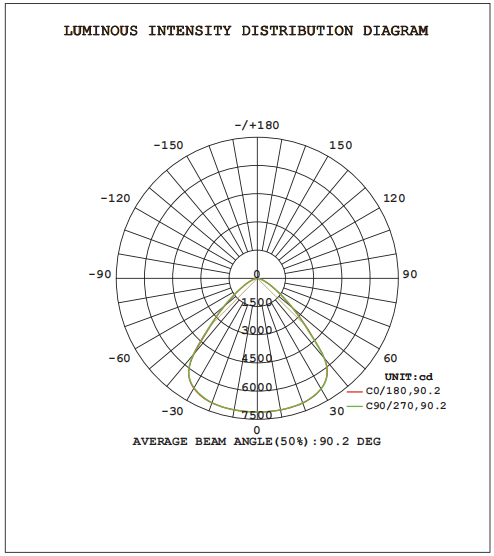

¬ Light Distribution
100W

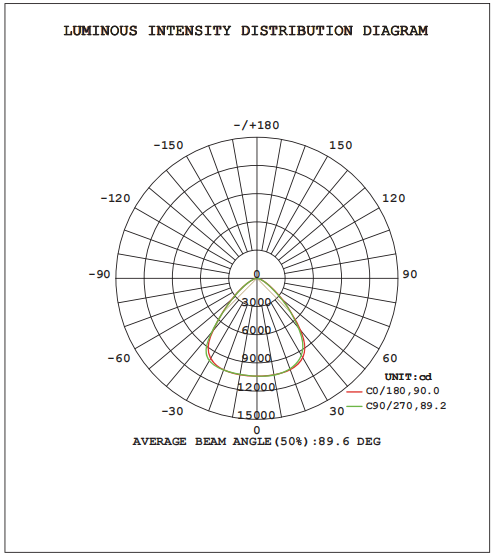

150W
200W

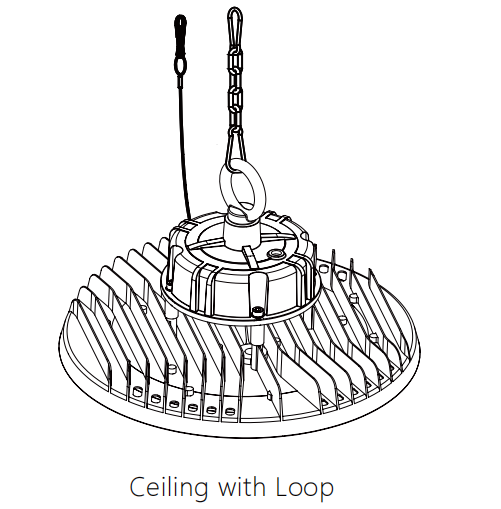

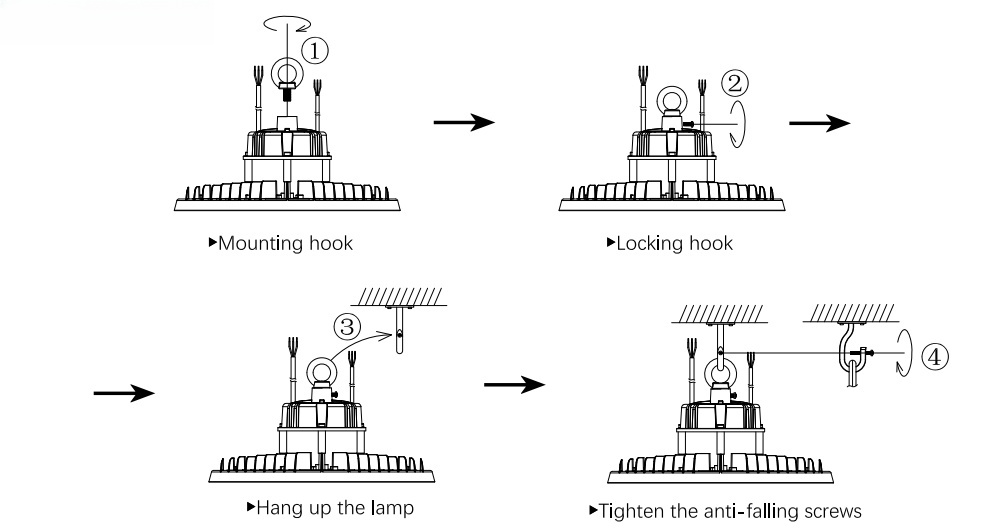

¬ Installation
¬ Application

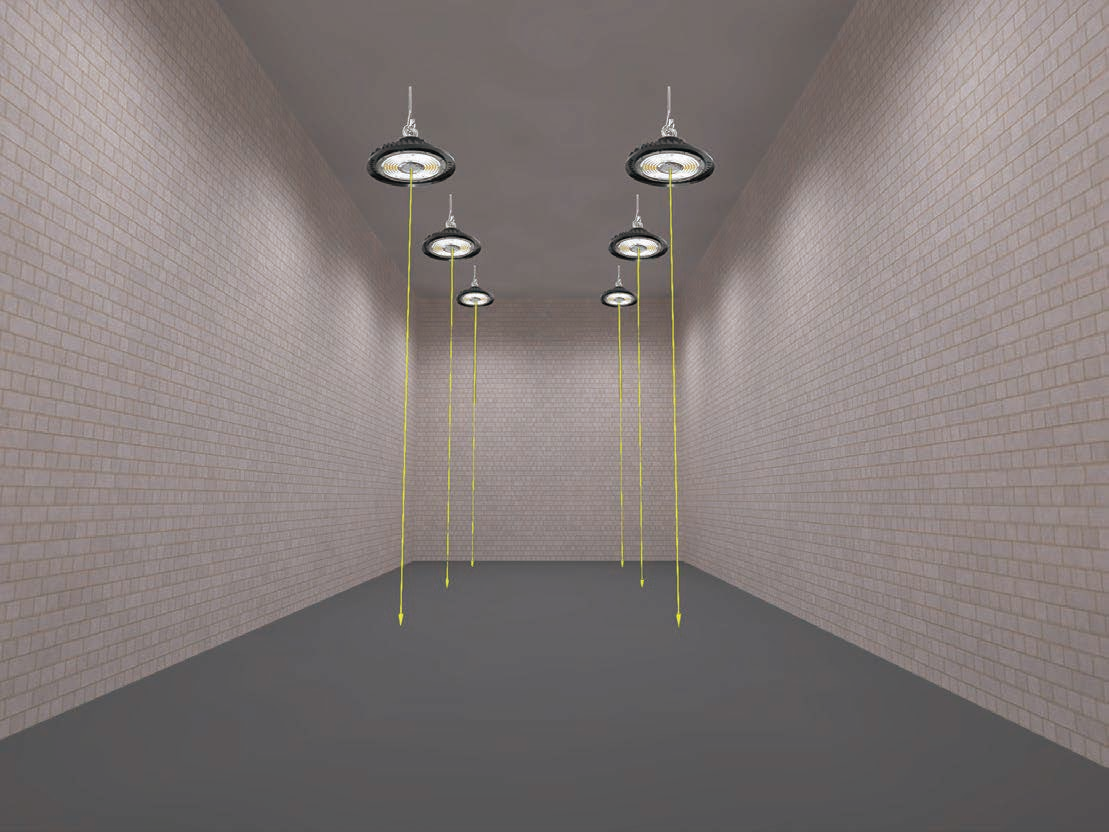

Tell us about your application, lux level, uniformity and UGR required, we'll have the engineering team make calculations to work out the professional lighting design with DIALUX.
| # | Optional Feature | Value or Description |
| 1 | Custom Power | 400W / 600W / 800W / 1200W / 1800W |
| 2 | Higher Voltage | 347V / 480V |
| 3 | Dimmability | 0-10V / DMX / DALI-2 |
| 4 | Sensors or Control | Daylight Sensor, Remote Control |
| 5 | Lamp Shield | Anti-glare |
| 6 | Laser Touch | Light Positioning |
